A660-M Long-Range 134.2kHz FDX-B Panel Reader, RS232 / RS485

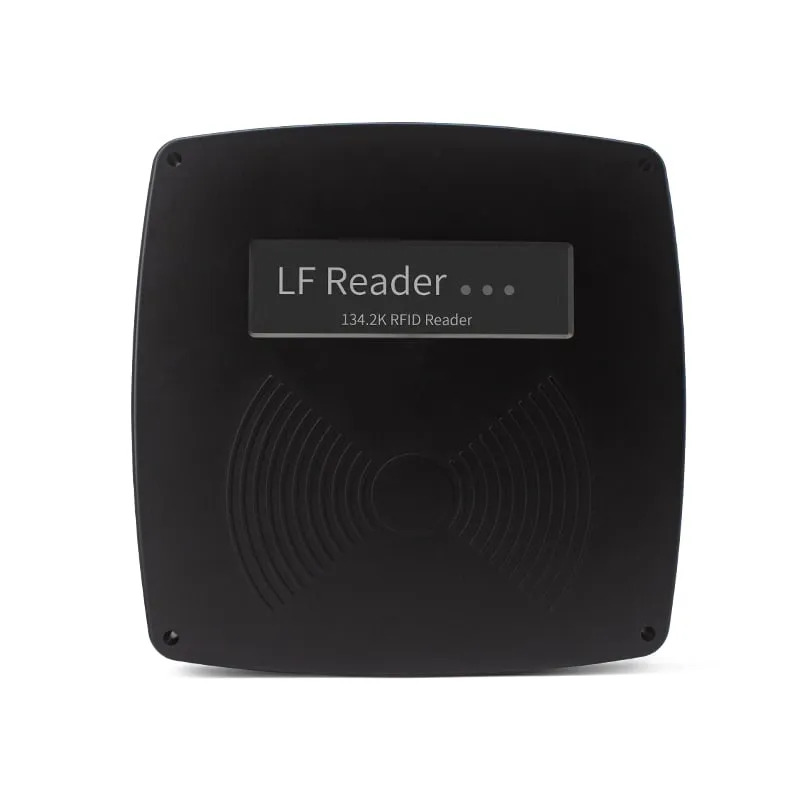

The A660-M is a fixed 260 × 260 mm panel reader for FDX-B and EMID animal tags, for integrators building feeding stations, race and gate readers or weigh-scale systems. It reads tags at 40 cm ± 5 cm (tag dependent), sends the number over RS232 or RS485 and has a resin-potted PVC housing.
- Frequency
- 134.2 kHz (FDX-B) / 125 kHz (EMID)
- Cards / tags
- FDX-B (ISO 11784/11785) tags, EMID tags
- Interface
- RS232, RS485
- Output
- Wiegand 26 / 34 listed; wiring confirmed in your quotation
- Read range
- 40 cm ± 5 cm (tag dependent)
- ✓ Sample units for evaluation
- ✓ Output format confirmed for your software
- ✓ Private label & OEM options
- ✓ Reply within 1 business day
Why integrators choose the A660-M
- About 40 cm read range — 40 cm ± 5 cm on FDX-B and EMID tags, depending on the tag.
- Serial output — RS232 for short runs, RS485 for longer cable runs to a controller, PLC or PC.
- Fast reads — read time under 0.1 s and a read interval under 0.5 s.
- Resin-potted housing — PVC with a sprayed finish, 260 × 260 × 35 mm, about 1.5 kg.

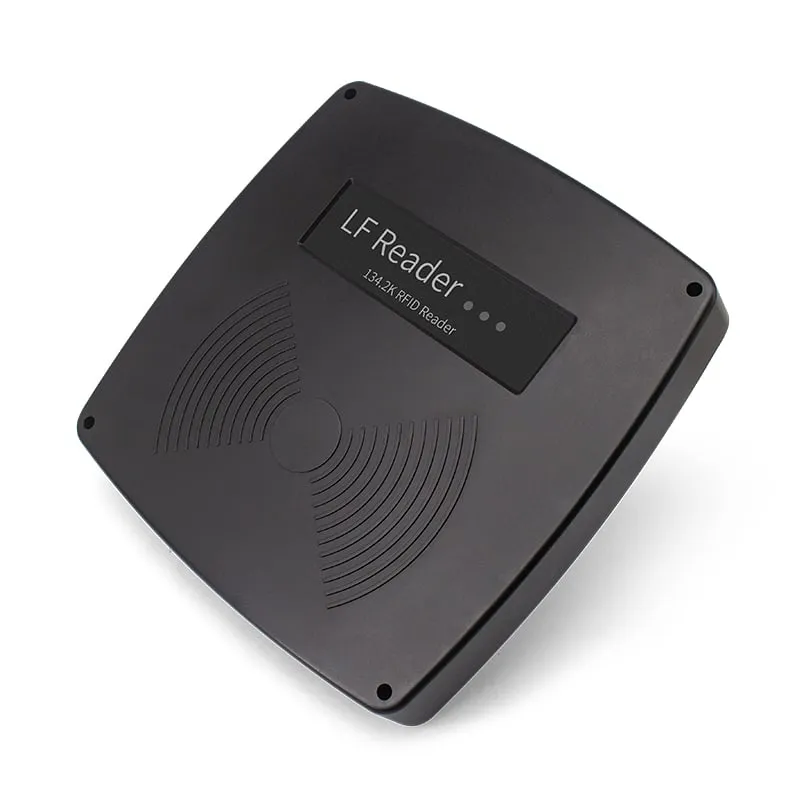

- Simple mounting — four holes on a 220 × 220 mm pattern; three LED indicators and a buzzer.
Where the A660-M fits
The A660-M is a fixed reader for places where animals pass or stop at a known point: automatic feeders, races and drafting gates, weigh scales and handling crates. It reads FDX-B and EMID ear tags at 40 cm ± 5 cm and passes the number to a controller, PLC or PC over a serial line.
Mount it so the ear tag passes through the read field, for example beside a feed trough or on the side of a race at ear height. Read time is under 0.1 s and the read interval under 0.5 s; test with your own tags at the speed your animals move before you fix the layout.
Output and wiring

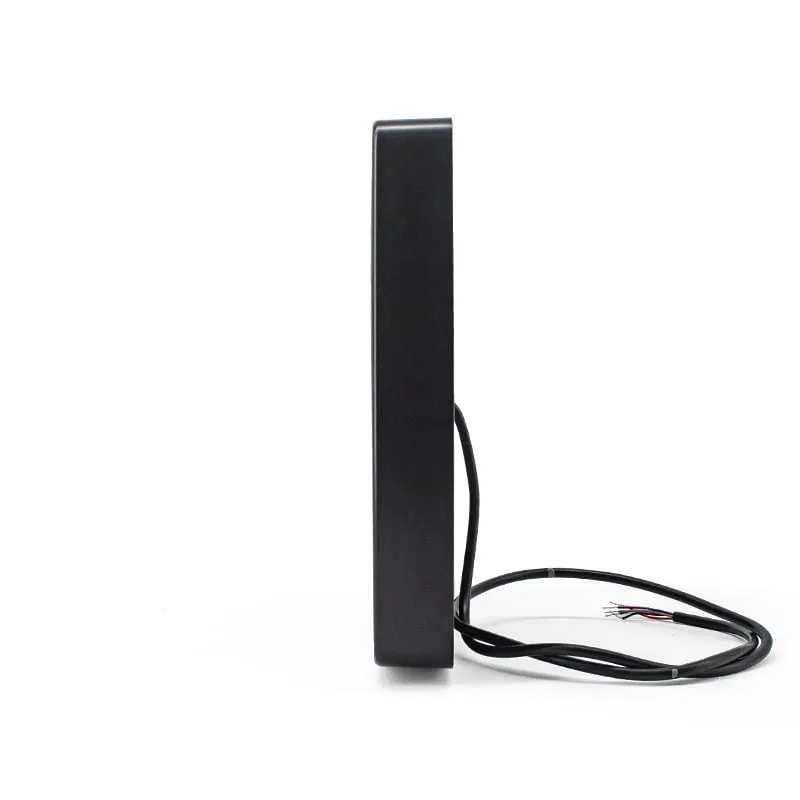

The A660-M has a pigtail cable with these wires:
| Wire | Function |
|---|---|
| Red | DC+ |
| Black | GND |
| White | RS232 TX |
| Gray | RS485 B |
| Purple | RS485 A |
Use RS232 for a short run to a PC or controller, and RS485 when the controller is further away or the cable passes through an electrically noisy area. The serial settings and frame format are confirmed in your quotation. Wiegand 26/34 is also listed for this model but is not part of the standard wiring above, so confirm it before ordering if your controller needs Wiegand.
Power is 12 V DC; the permitted supply range is confirmed in your quotation. For interface trade-offs, see USB vs RS232 vs RS485 vs Wiegand.
Installation notes
- Mount on wood, masonry or plastic using the four holes at 220 × 220 mm spacing. Large metal surfaces behind or near the antenna reduce range.
- Keep the panel away from mains cables, motors, monitors and switching power supplies; low-frequency readers pick up their electrical noise.
- Power up with no tag in front of the antenna. The reader tunes itself at start-up.
- Switch off the supply before connecting or disconnecting any wire.
- The electronics are resin-potted in a PVC housing, but no IP rating is published. Tell us about wash-down or outdoor exposure before you order.
- Rated for -20 °C to +55 °C and below 90 % RH, non-condensing.
A660-M specifications
| Model | A660-M |
|---|---|
| Product type | Fixed long-range animal tag panel reader |
| Frequency | 134.2 kHz (FDX-B) / 125 kHz (EMID) |
| Form factor | Wall or bracket panel with integrated antenna |
| Standards | ISO 11784, ISO 11785 (FDX-B), EM4100 (EMID) |
|---|---|
| Supported tags | FDX-B (ISO 11784/11785) tags, EMID tags |
| Read range | 40 cm ± 5 cm (tag dependent) |
| Read time | < 0.1 s |
| Read interval | < 0.5 s |
| Read/write | Read-only |
| Interfaces | RS232, RS485 |
|---|---|
| Wiegand | Wiegand 26 / 34 listed; wiring confirmed in your quotation |
| Wiring | Red DC+, black GND, white RS232 TX, gray RS485 B, purple RS485 A |
| Indicators | 3 LEDs, buzzer |
| Power | 12 V DC (supply range confirmed in your quotation) |
|---|---|
| Dimensions | 260 × 260 × 35 mm |
| Mounting hole spacing | 220 × 220 mm |
| Weight | approx. 1.5 kg |
| Housing | PVC with sprayed finish, resin-potted |
| Color | Black |
| Operating temperature | -20 °C to +55 °C |
| Humidity | < 90 % RH, non-condensing |
| Package size | 270 × 285 × 40 mm |
Specifications of A660-M as supplied for the standard version. Read range depends on the card or tag, mounting surface and environment — we can test your own cards before you order.
Card, tag and system compatibility
Works with
- ✓ISO 11784/11785 FDX-B ear tags and transponders at 134.2 kHz
- ✓EMID (EM4100-format) animal tags at 125 kHz
- ✓Controllers, PLCs and PCs with an RS232 or RS485 serial input
- ✓Feeding-station, gate and weigh-scale controllers
Not designed for
- ✕Writing, programming or copying tags (read-only reader)
- ✕HDX and FDX-A animal tags
- ✕Direct USB connection — use a USB-to-RS232 or USB-to-RS485 adapter on the PC
- ✕Mounting directly on large steel plates
Card not listed? Send us the card type or a photo and we will confirm compatibility before you buy.
Integration in 4 steps
- 1
Mount the panel on a non-metallic surface using the four holes at 220 × 220 mm spacing, facing the point where the tag passes.
- 2
Wire power (red DC+, black GND) and the serial link: white RS232 TX for a short run, or purple RS485 A and gray RS485 B for a longer run.
- 3
Switch on 12 V DC with no tag in front of the antenna, so the reader can tune itself.
- 4
Read a test tag at the working distance (about 40 cm, tag dependent) and check the serial string in your controller. Baud rate and frame format are confirmed in your quotation.
OEM / ODM options for A660-M
- ◆Serial output string agreed against your controller or PLC, confirmed in your quotation
- ◆Wiegand 26 or 34 output wiring confirmed in your quotation
- ◆Front label printed with your brand on request
Typical applications
A660-M FAQ
What read range does the A660-M achieve?
40 cm ± 5 cm, depending on the tag. Nearby metal and electrical noise from motors, mains cables or switching power supplies reduce the range.
Does the A660-M support Wiegand?
Wiegand 26/34 is listed in the specification, but the standard wiring documents RS232 TX and RS485 A/B only. If your controller needs Wiegand, say so in your RFQ and the wiring is confirmed in your quotation.
Can I connect the A660-M to a PC?
Yes. Connect it to a PC serial port over RS232, or use a USB-to-RS232 or USB-to-RS485 adapter. The reader has no USB interface of its own.
Is the A660-M waterproof?
The electronics are resin-potted in a PVC housing, but no IP rating is published. Tell us about outdoor, wash-down or high-humidity exposure before ordering; the rated humidity is below 90 % RH, non-condensing.
What supply voltage does the A660-M need?
12 V DC. The permitted supply range is confirmed in your quotation.
