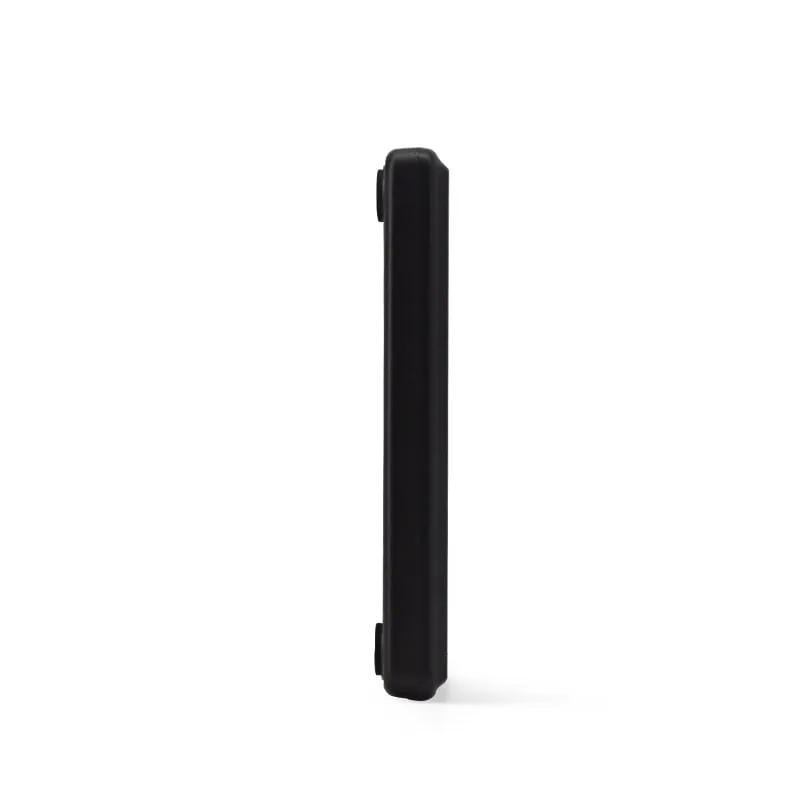

13.56MHz H110-U
13.56MHz USB NFC / MIFARE Card Reader, Slim Pad, No Driver
- USB
- Desktop
Read range: Up to 80 mm
RFID & NFC readers · OEM / ODM
47 card reader models across 125kHz, 13.56MHz NFC, UHF, 134.2kHz animal ID and magnetic stripe — with USB keyboard emulation, RS232/RS485, Wiegand, Bluetooth and TCP/IP. Output settings, sample availability and private-label options are confirmed for the selected model in your quotation.
Reader families
Read-only 125kHz proximity card readers for EM4100, TK4100 and SMC4001 cards and key fobs: USB keyboard-emulation pads, DB9 RS232 serial readers, a USB stick and a keypad reader. Most read up to 80 mm and output a 10-digit decimal number.
9 models
Nine read-only 13.56MHz RFID and NFC readers for MIFARE Classic, NTAG and ICODE cards, in desktop, USB stick and keypad formats. Most read the card UID at up to 80 mm (the keypad model up to 50 mm) and pass it to your software as keyboard input or serial data.
9 models

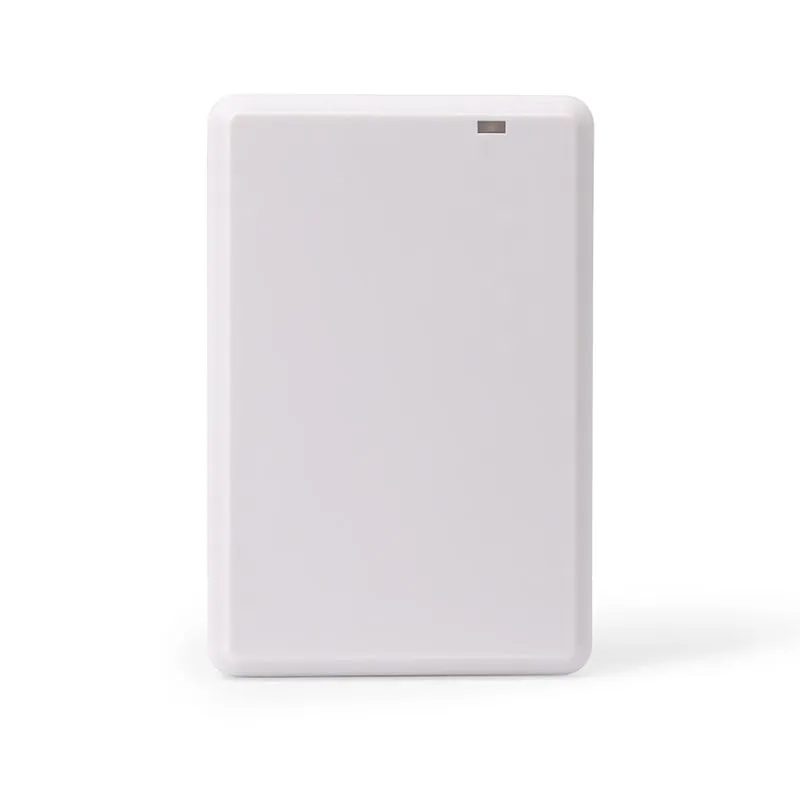

Four USB desktop reader/writers for EPC Gen2 UHF tags, for issuing, encoding and checking tags at a desk. Each reads up to 0.5 m, writes up to 0.2 m and types tag data as a USB keyboard, with a virtual COM build on request.
4 models
All-in-one UHF RFID readers with a built-in 7–12 dBi antenna for vehicle gates, parking lanes and logistics entries. Five models cover 0–5 m to 0–20 m rated range, with Wiegand 26/34, RS232/RS485, USB and optional TCP/IP output.
5 models
Battery-powered RFID readers that send card and tag IDs to phones, tablets and PCs over Bluetooth or a 2.4G receiver. Choose a pocket reader for 13.56MHz or 125kHz cards, or one of four UHF handhelds, two with a barcode scanner.
5 models
Plug-in readers that connect straight to the USB-C port of an Android phone or tablet, take power from it and type the card or tag number into any app. Three models cover 13.56MHz NFC, 125kHz EM4100 and UHF EPC tags.
3 models
Read-only RFID readers for ISO 11784/11785 FDX-B and 125 kHz EMID animal tags: OLED handhelds with memory, a tag and barcode combo, USB desk readers, a USB-C plug-in for Android with USB OTG and a 40 cm RS232/RS485 panel for feeders and races.
7 models
Resin-potted wall readers that send the card number to a door, attendance or parking controller over Wiegand 26 or 34. The L410-W reads 125 kHz EM4100/TK4100 cards, the H410-W reads MIFARE Classic, and the D410-W reads both (availability confirmed in your quotation).
1 model
86 × 86 mm wall readers that decode visitor QR codes and read staff EM or MIFARE cards, then pass the result to a door controller, turnstile board, elevator controller or PC. Choose the slim Q420-M on flying leads, or the Q430-M with a terminal block and USB.
2 models
Read-only USB swipe readers for ISO magnetic stripe cards. Choose the compact M170-U for tracks 1, 2 and 3 with driver-free keyboard output, or the long-body M180-U for Track 2 membership and ID numbers.
2 models
Why work with Henrium
We focus on one thing: card and tag readers. That means we can tell you exactly which cards a model reads, what it outputs and how it connects — before you place an order.
Read-range and card tests
Send your own cards or tags and we check compatibility and read distance on the model you are considering.
Output that matches your software
Decimal or hex, byte order, prefix/suffix, Enter key, Wiegand 26 or 34 — configured before shipment where the model supports it.
The interfaces you already use
USB keyboard emulation, USB-C/OTG for Android, Bluetooth, RS232, RS485, Wiegand and TCP/IP, so you can match the reader to your existing host.
OEM / ODM programmes
Private label, frequency band and display-language options for distributors and device makers — scoped in your quotation.
Featured models
13.56MHz H110-U
Read range: Up to 80 mm
125kHz
UHF

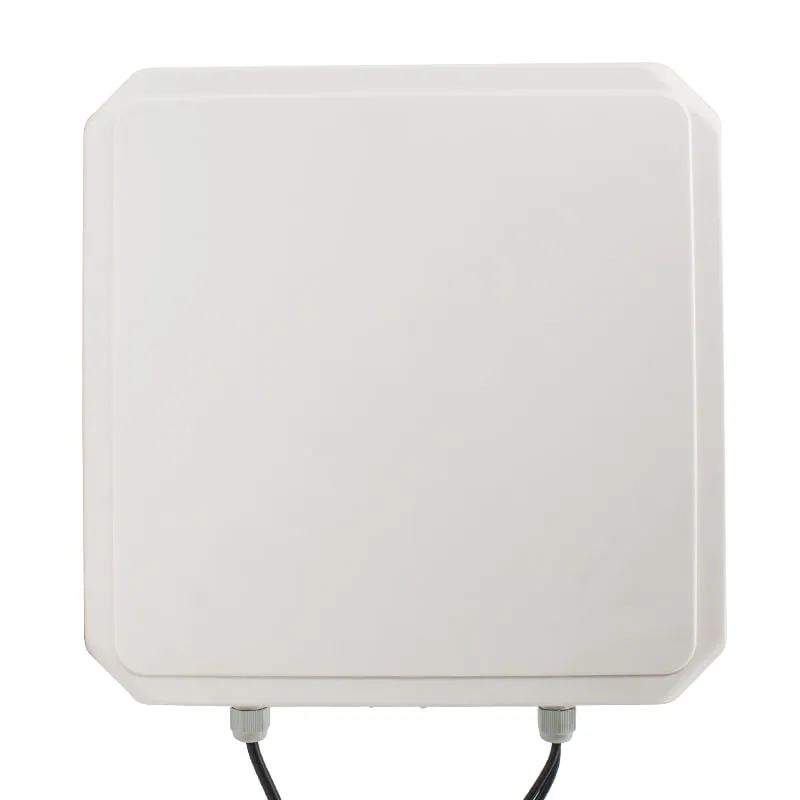

UHF U630-M+1 variant
Read range: 0–6 m

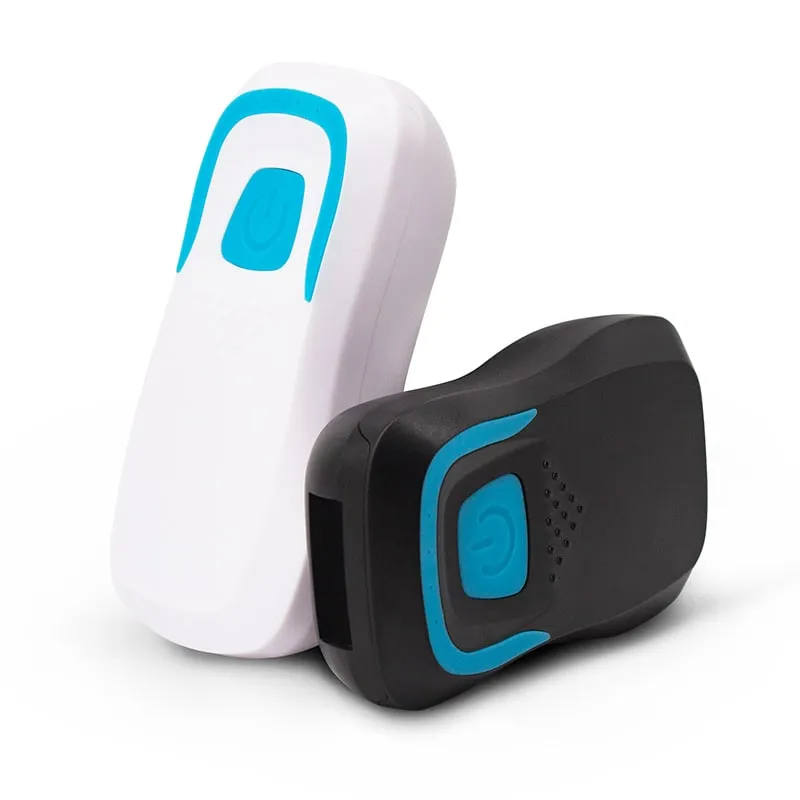

13.56MHz H510-B+2 variants
Read range: 20–60 mm

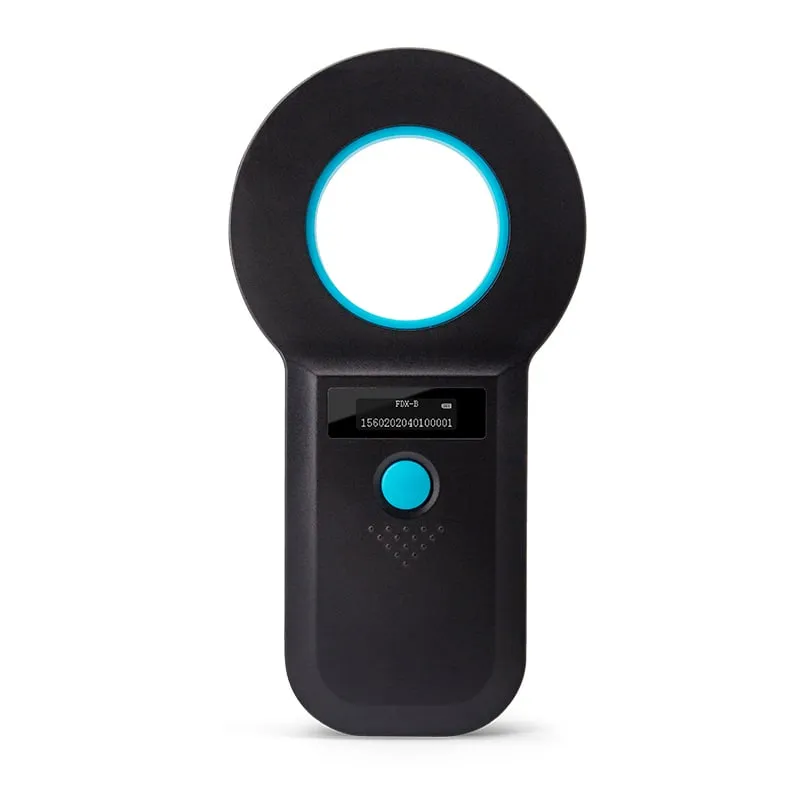

134.2kHz A520-M
Read range: > 8 cm

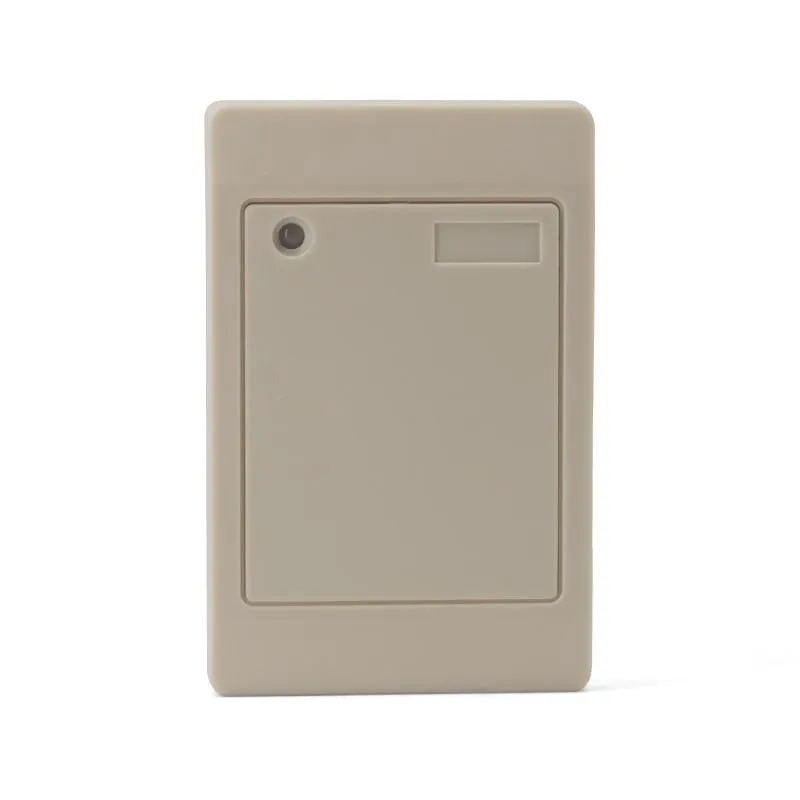

125kHz L410-W+2 variants
Read range: 0–100 mm

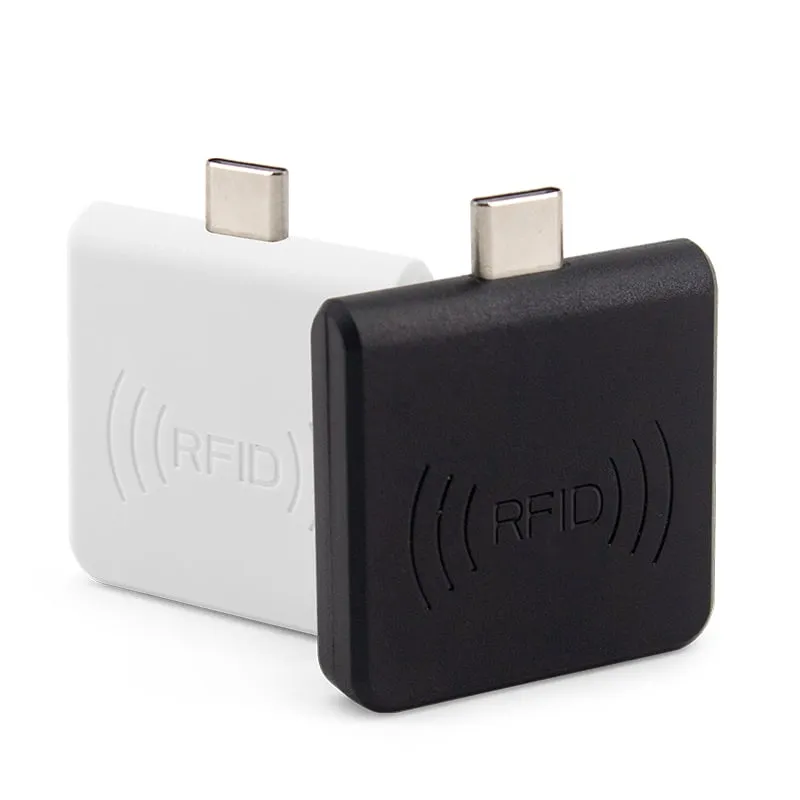

13.56MHz H220-C
Read range: 0–30 mm front and back, 0–10 mm from the side
Applications
Recommended readers, typical architecture and integration notes →
Recommended readers, typical architecture and integration notes →
Recommended readers, typical architecture and integration notes →
Recommended readers, typical architecture and integration notes →
Recommended readers, typical architecture and integration notes →
Recommended readers, typical architecture and integration notes →
Recommended readers, typical architecture and integration notes →
How ordering works
Tell us the job
Card or tag type, host system or controller, interface, environment and quantity.
Get a matched model
We recommend a model, confirm the output format and send a quotation.
Test a sample
Check read range, card compatibility and software integration on your own setup.
Volume order
Firmware and labelling fixed to your sample; lead time and shipping confirmed in the order.
Guides
Sourcing & OEM
A useful RFID reader quote identifies the card or tag, reading or writing task, host interface, output and quantity. Compare the same configuration and included items, then confirm sample costs, lead time and order terms in writing. Henrium quotes by model and configuration; this guide helps you prepare the requirements.
Access control
Find the format your controller stores, such as a 10-digit decimal or a Wiegand 26 facility code and card number. Set the USB desk reader, or the software, to produce that same number. Enroll one pilot card and check it at a door before bulk issue. Then enroll each card by clicking the card field and presenting the card.
Selection guides

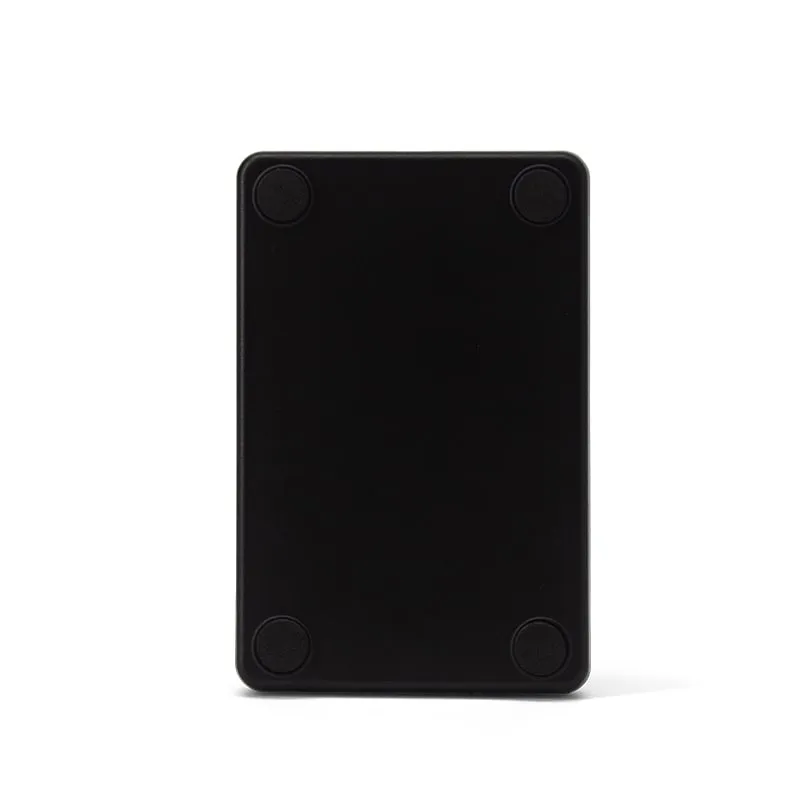

Choose the reader from the exact card chip and required task. L110-U reads the ID of EM4100-compatible 125kHz cards; H110-U reads the UID of supported 13.56MHz ISO/IEC 14443A cards. Neither model reads the other band or writes cards. ICODE uses a different HF protocol. Confirm the chip, host and complete output with your actual cards before ordering.
Animal ID
No. A phone's NFC works only at 13.56MHz, while ISO pet microchips work at 134.2kHz, so no app can read an implanted chip with the phone alone. A phone can show the number if you add a 134.2kHz reader: a USB-C plug-in for Android, or a handheld scanner that sends the ID over Bluetooth.
Technology explained
EM4100 and TK4100 are interchangeable read-only 125kHz chips. Each sends one thing to a reader: a fixed 64-bit code carrying a 32-bit ID number. The card has no writable memory and no security. Readers show the ID as a 10-digit decimal, 8-digit hex or Wiegand facility and card number, so pick the format your system stores.
Animal ID
FDX-B and HDX are the two ways ISO 11785 lets a 134.2kHz animal tag send the same 64-bit ISO 11784 ID. An FDX-B tag replies while the reader's field is on. An HDX tag stores energy, then replies while the field is off. A reader reads HDX tags only if it supports HDX.
Start with the exact card chip and task, then match the reader protocol and host interface. EM4100-compatible cards use 125kHz, MIFARE and NTAG use 13.56MHz ISO/IEC 14443A, and EPC Gen2 labels use UHF. If the chip is unknown, share the system details and card markings; a photo alone cannot confirm compatibility. Agree on sample testing when necessary.
Most USB, USB-C and Bluetooth models in the catalogue work as a keyboard: the card number is typed at the cursor in the application that has focus, with no driver. Serial (RS232/RS485), Wiegand and TCP/IP models are integrated through the controller or your software; UHF long-range readers come with an SDK.
Yes. Most 125kHz and 13.56MHz USB readers output a 10-digit decimal number by default (the Bluetooth pocket readers default to 8-digit hex), and alternative formats such as hexadecimal, a different byte order or an added Enter key can be configured before shipment. Tell us what your software expects and we confirm whether the model can output it.
Yes. Sample units are available for evaluation so you can test your own cards, range and software. Sample pricing and shipping are confirmed in your quotation.
