H210-U 13.56MHz USB stick NFC reader, white housing with key ring

H210-U 13.56MHz USB Stick NFC Reader for MIFARE Cards, Plug-In

Q: Does the H210-U work with Android phones?

Yes, through a USB OTG adapter on phones and tablets that support OTG. It types the card number into the app that has focus, like a keyboard. For a direct USB-C plug-in, see the H220-C.

Q: Does the H210-U work with an iPhone?

iOS is not on the H210-U's supported list, so we do not offer it for iPhone or iPad.

Q: How big is the H210-U?

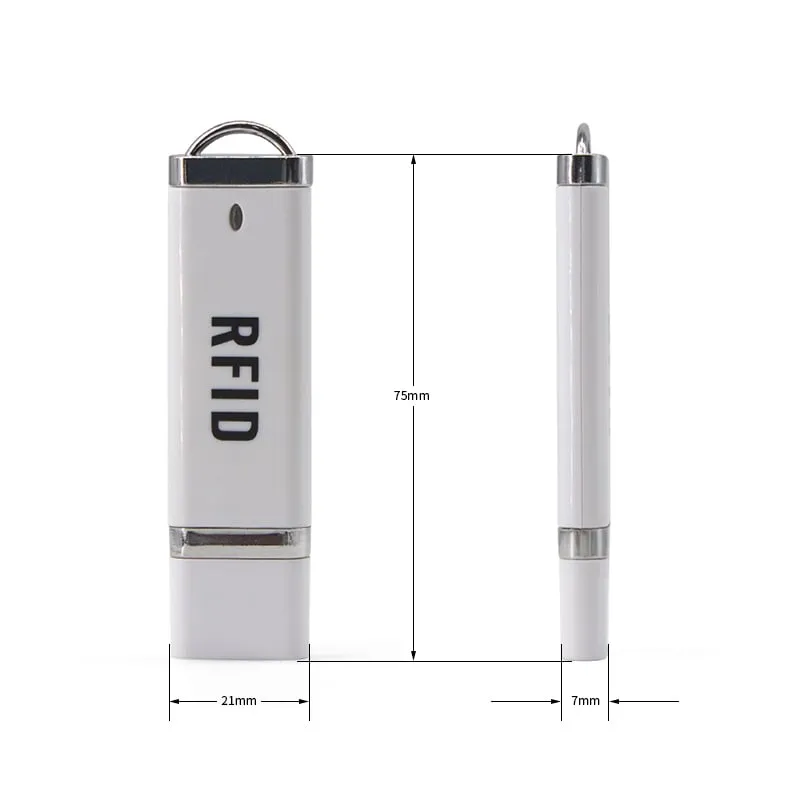

75 × 21 × 7 mm and about 10 g, or about 40 g in its retail box. It has a cap over the USB plug and a key ring.

Q: Which cards does the H210-U read?

MIFARE Classic 1K (S50), MIFARE Classic 4K (S70), NTAG203 and other ISO 14443A cards, UID only, at up to 80 mm. For 125kHz EM4100 cards, use the L210-U.

The H210-U is a read-only 13.56MHz reader the size of a USB flash drive, 75 × 21 × 7 mm and about 10 g, that plugs straight into a USB-A port. It reads MIFARE Classic 1K/4K and NTAG203 UIDs at up to 80 mm and types them as 10-digit decimal numbers, also on Android through an OTG adapter.

Frequency: 13.56 MHz
Cards / tags: MIFARE Classic 1K (S50), MIFARE Classic 4K (S70), NTAG203, other ISO 14443A cards (UID)
Interface: USB-A plug, human-input device (keyboard emulation, driver-free)
Output: 10-digit decimal card UID (4 bytes)
Read range: Up to 80 mm (depends on card and environment)

Request a quote for H210-U Order a sample Datasheet (PDF)

✓ Sample units for evaluation
✓ Output format confirmed for your software
✓ Private label & OEM options
✓ Reply within 1 business day

Why integrators choose the H210-U

Plugs straight in — USB-A plug with no cable, 75 × 21 × 7 mm and about 10 g, with a protective cap and a key ring.
USB keyboard, no driver — enumerates as a human-input device and types the card number at the cursor.
Android through OTG — with an OTG adapter, card numbers go into any app on a phone or tablet that supports USB OTG.
10-digit decimal default — the 4-byte UID as a 10-digit number, with custom formats set before shipment.
LED and buzzer confirm each read, with a read time under 200 ms.

Where a stick reader makes sense

A desk pad needs a cable and a spot on the counter. The H210-U needs only a free USB-A port, which makes it the practical choice for laptops at mobile check-in points, hot desks, event and training registration, and field staff who carry a reader in a laptop bag. It also suits thin clients and all-in-one PCs where a pad would be in the way.

Output is the same as on the H110-U and H120-U desk pads: the card UID is typed as a 10-digit decimal number into the field that has the cursor, so the same software works with both. At about 10 g, and about 40 g in its small retail box with a plastic tray, it is also light to ship to distributed sites.

Using the H210-U with Android phones and tablets

Connect the stick through a USB OTG adapter (USB-A female to the phone's USB-C or micro-USB port). The phone or tablet must support USB OTG. The reader then behaves like an external keyboard: open any app, tap into a text field and present the card.

If the reader will live on a phone permanently, the H220-C plugs directly into USB-C without an adapter. The Android OTG checklist covers settings and common pitfalls. iOS is not on the H210-U's supported list.

H210-U or a desktop pad?

Choose the H210-U when portability or port-side mounting matters more than a fixed reading spot. For a counter where customers lay their card down, a pad such as the H110-U gives a larger, more obvious target and keeps the reader off the PC's port.

H210-U specifications

General
Model	H210-U
Frequency	13.56 MHz
Form factor	USB stick reader with cap and key ring
Housing	ABS

Cards & reading
Standard	ISO/IEC 14443A (UID read only)
Supported cards	MIFARE Classic 1K (S50), MIFARE Classic 4K (S70), NTAG203, other ISO 14443A cards (UID)
Read range	Up to 80 mm (depends on card and environment)
Read time	< 200 ms
Read interval	< 0.5 s

Interface & output
Interface	USB-A plug, human-input device (keyboard emulation, driver-free)
Default output	10-digit decimal card UID (4 bytes)
Custom output	Custom output format on request
Operating systems	Windows XP, Vista, 7, 10; Linux; Android (via USB OTG adapter)

Physical & environment
Dimensions	75 × 21 × 7 mm
Weight	Approx. 10 g (approx. 40 g packed)
Power	5 V DC from USB, 100 mA
Indicators	LED and buzzer
Operating temperature	-10 °C to +70 °C
Storage temperature	-20 °C to +80 °C
Humidity	< 90 % RH

Specifications of H210-U as supplied for the standard version. Read range depends on the card or tag, mounting surface and environment — we can test your own cards before you order.

Download the H210-U datasheet (PDF, A4)

Card, tag and system compatibility

Works with

✓MIFARE Classic 1K (S50) and MIFARE Classic 4K (S70) cards (UID read)
✓NTAG203 tags and other ISO 14443A cards (UID read)
✓Windows XP, Vista, 7 and 10; Linux
✓Android phones and tablets with USB OTG, through an OTG adapter

Not designed for

✕Writing, encoding or copying cards (read-only reader)
✕iPhone and iPad (iOS is not on the supported list)
✕MIFARE DESFire / Plus, ISO 14443B, FeliCa and ISO 15693 cards (not in the supported list)
✕125kHz EM4100 / TK4100 cards: use the L210-U stick

Card not listed? Send us the card type or a photo and we will confirm compatibility before you buy.

Integration in 4 steps

1
Remove the cap and plug the H210-U into a USB-A port, or into an OTG adapter on an Android device; no driver is needed.
2
Open any document or app and click or tap into a text field.
3
Hold the card close to the stick. The LED and buzzer confirm the read and the 10-digit UID is typed.
4
For a different number format, specify it in your RFQ so it is set before shipment.

OEM / ODM options for H210-U

◆Custom output format set before shipment on request, for example 8-digit hex or reversed byte order
◆125kHz version in the same stick housing: L210-U
◆Private-label marking and packaging for OEM orders, confirmed in your quotation

How OEM/ODM projects work →

Typical applications

H210-U FAQ

Does the H210-U work with Android phones?

Yes, through a USB OTG adapter on phones and tablets that support OTG. It types the card number into the app that has focus, like a keyboard. For a direct USB-C plug-in, see the H220-C.

Does the H210-U work with an iPhone?
