H110-U 13.56MHz USB NFC / MIFARE Card Reader, Slim Pad, No Driver
The H110-U is a read-only 13.56MHz desktop reader for MIFARE Classic 1K/4K and NTAG203 cards, built for card enrollment, attendance and membership desks. It connects over USB as a keyboard, needs no driver, reads at up to 80 mm and types each card UID as a 10-digit decimal number at the cursor.
- Frequency
- 13.56 MHz
- Cards / tags
- MIFARE Classic 1K (S50), MIFARE Classic 4K (S70), NTAG203, other ISO 14443A cards (UID)
- Interface
- USB, keyboard emulation (driver-free)
- Output
- 10-digit decimal card UID (4 bytes)
- Read range
- Up to 80 mm (depends on card and environment)
- ✓ Sample units for evaluation
- ✓ Output format confirmed for your software
- ✓ Private label & OEM options
- ✓ Reply within 1 business day
Why integrators choose the H110-U
- No driver, no SDK — the reader works as a USB keyboard and types the card number into whichever field has the cursor.
- 10-digit decimal by default — the 4-byte card UID is sent as a 10-digit decimal number, and other formats can be set before shipment.
- Reads up to 80 mm — MIFARE Classic 1K (S50), MIFARE Classic 4K (S70), NTAG203 and other ISO 14443A cards, with a read time under 200 ms.

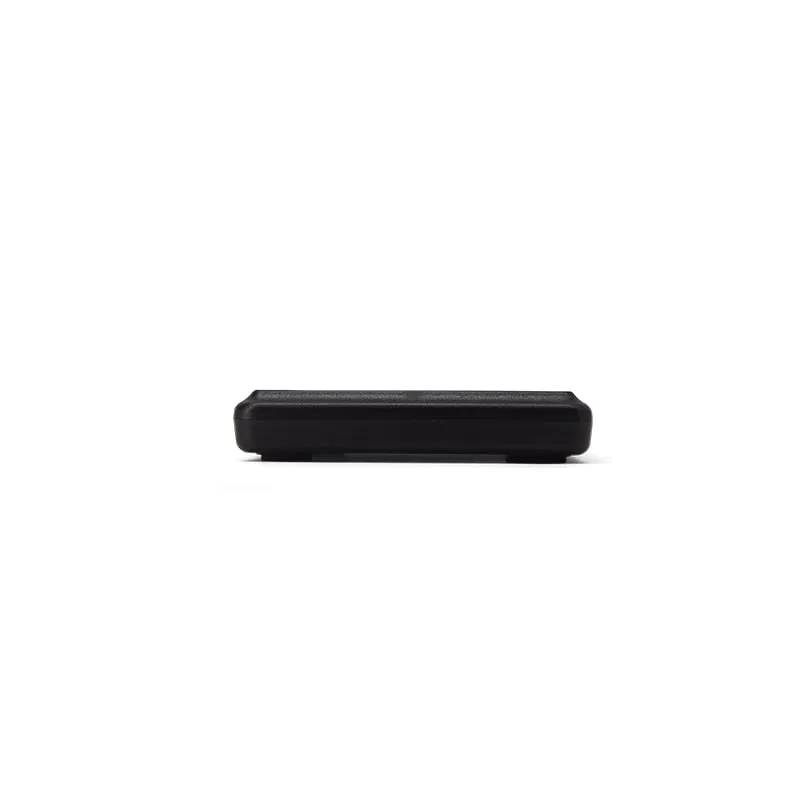

- 10 mm slim pad — 104 × 68 × 10 mm and about 140 g with a 1400 mm USB cable, so it lies flat beside a keyboard.
- Clear feedback — red LED on standby, green LED and a beep on every successful read.
Where the H110-U fits
The H110-U is the reader to put on a desk where a person needs a card number inside software quickly and without typing errors. Typical jobs are enrolling new MIFARE cards into access-control software, registering staff or visitors for attendance, and looking up members at a reception or POS counter.
Because it works as a USB keyboard, nothing is installed on the PC. The number goes into whichever field has the cursor: a web form, an Excel cell or the card-number box of your own application. At 10 mm thick and about 140 g, the pad lies flat next to a keyboard or under a monitor stand.
It is a read-only UID reader. It identifies a card by its unique ID; it does not read sector data, write to the card or copy it.
Matching the output to your software
By default the H110-U reads the 4-byte card UID and types it as a 10-digit decimal number. Many systems store the same UID differently, as 8-digit hex or with the byte order reversed, and that is the usual reason a card "reads a different number" from the one already enrolled. Compare a sample card with your database using the card number converter, then tell us the format you need: a custom output format is set before shipment. The card number formats guide explains the common variants.
On PCs with a non-US keyboard layout, set the input language to English (US) so the digits arrive correctly.
H110-U, H110-R, H120-U or L110-U?
H110-U specifications
| Model | H110-U |
|---|---|
| Frequency | 13.56 MHz |
| Form factor | Slim desktop card pad |
| Housing | ABS |
| Color | Black |
| Standard | ISO/IEC 14443A (UID read only) |
|---|---|
| Supported cards | MIFARE Classic 1K (S50), MIFARE Classic 4K (S70), NTAG203, other ISO 14443A cards (UID) |
| Read range | Up to 80 mm (depends on card and environment) |
| Read time | < 200 ms |
| Read interval | < 0.5 s |
| Interface | USB, keyboard emulation (driver-free) |
|---|---|
| Default output | 10-digit decimal card UID (4 bytes) |
| Custom output | Custom output format on request |
| Operating systems | Windows XP, Vista, 7, 10; Linux; Android (via USB OTG) |
| Dimensions | 104 × 68 × 10 mm |
|---|---|
| Weight | Approx. 140 g |
| Cable length | 1400 mm |
| Power | 5 V DC, USB bus-powered |
| Indicators | Red LED (standby), green LED (read success), buzzer |
| Operating temperature | -10 °C to +70 °C |
| Storage temperature | -20 °C to +80 °C |
| Humidity | < 90 % RH |
Specifications of H110-U as supplied for the standard version. Read range depends on the card or tag, mounting surface and environment — we can test your own cards before you order.
Card, tag and system compatibility
Works with
- ✓MIFARE Classic 1K (S50) and MIFARE Classic 4K (S70) cards (UID read)
- ✓NTAG203 tags and other ISO 14443A cards (UID read)
- ✓Windows XP, Vista, 7 and 10; Linux; Android through a USB OTG adapter
- ✓Any application with a text field: spreadsheets, web forms, access-control, attendance and POS software
Not designed for
Card not listed? Send us the card type or a photo and we will confirm compatibility before you buy.
Integration in 4 steps
- 1
Plug the USB cable into the PC. The reader is recognized as a keyboard, no driver is installed, and the LED shows red (standby).
- 2
Open the target application, such as Notepad, Excel or your enrollment software, and click into the card-number field.
- 3
Present a card flat over the pad. The LED turns green, the buzzer sounds and the 10-digit UID is typed at the cursor.
- 4
If the number does not match your existing records, check it with the card number converter and ask for the matching output format before shipment.
OEM / ODM options for H110-U
- ◆Custom output format set before shipment on request, for example 8-digit hex, reversed byte order or an added Enter
- ◆RS232 version in the same slim pad: H110-R
- ◆Same slim housing for other bands: L110-U (125kHz) and A110-U (134.2kHz animal tags)
- ◆Private-label marking and packaging for OEM orders, confirmed in your quotation
Typical applications
H110-U FAQ
Can the H110-U write to MIFARE cards?
No. The H110-U is read-only: it reads the card UID and types it as a number. It does not write sectors, change keys or copy cards.
What number does the H110-U type for a card?
By default, the card's 4-byte UID as a 10-digit decimal number. If your software stores the UID as hex or in reversed byte order, the output format can be changed before shipment; compare a sample card with the card number converter first.
Does the H110-U read NTAG213 stickers?
NTAG203 is on its supported list; NTAG213 is an ISO 14443A tag but is not named for this model. NTAG tags carry a 7-byte UID while the default output is built from 4 bytes, so send a sample tag and we confirm the output before you order. The H150-U lists NTAG213.
How far away does a card read?
Up to 80 mm with a standard ISO card, depending on the card and its surroundings. Key fobs and small stickers read closer, and a metal desk under the reader reduces range.
Does the H110-U work on Linux and Android?
Yes. Linux and Android are on its supported list, along with Windows XP, Vista, 7 and 10. On Android, connect it through a USB OTG adapter; the number is typed into the app that has focus.
